What is propensity modeling ?
Propensity modeling is estimating how likely a customer will perform a given action. There are several actions that can be useful to estimate:
- Purchasing a product
In this article we we will focus on estimating the propensity to purchase an item on an e-commerce website.

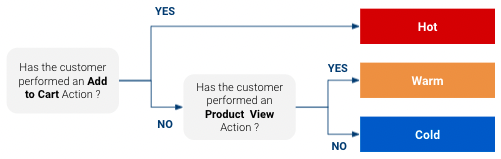

But why estimate propensity to purchase ? Because it allows toadapt how we want to interact with a customer. For exemple, suppose we have a very simple propensity model that classify the customers in “Cold”, “Warm” and “Hot” for a given product (“Hot” being customers with highest chance of buying and “Cold” the least):
Well, based on this classificationyou can have a specific targeted response for each class. You might want to have a different marketing approach with a customer that is very close to buying than with one who might not even have heard of your product. Also if you have a limited media budget , you can focus it on customers that have a high likelihood to buy and not spend too much on the ones that are long shots.
This simple type of rule based classification can give good results and is usually better than not having any but it has several limitations:
It is likely not exploiting all the data you have at your disposal whether it be more precise information on the customer journey or your website or other data sources you may have at your disposal like CRM data.
- While it seems obvious that customers classified as “Hot” are more likely to purchase than “Warm” which are more likely to purchase than “Cold”, this approach does not give us any specific figures on how likely they are to purchase. Do “warm” customers have 3% chance to purchase ? 5%? 10% ?
- Using simple rules, the number of classes you can obtain is limited, which limits how customized your targeted response can be.
To cope with those limitations we can use a more data driven approach: use machine learning on our data to predict a probability of purchase for each customer.
Understanding Google Analytics data

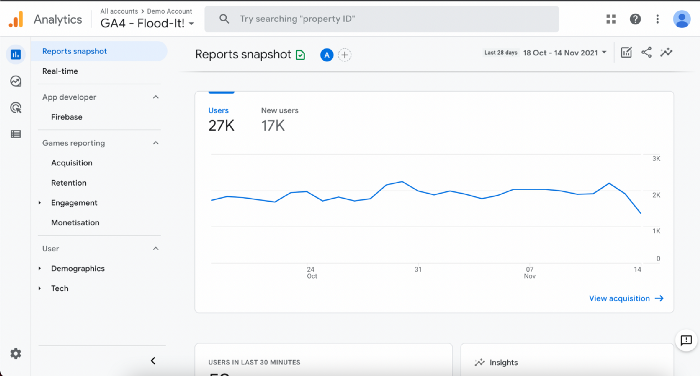

Google Analytics is an analytics web service that tracks usage data and traffic on website and applications.

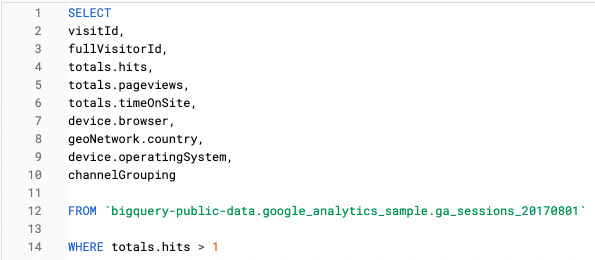

Google Analytics data can be easily exported to Big Query (Google Cloud Platform fully managed data warehouse service) where it can be accessed via an SQL like syntax:
Note that the Big Query export table with Google Analytics data is a nested table at session level:
- Sessions are a list of actions a specific customer does within a given timeframe. They start when a customer visit a page and end after 30 minutes of activity.
- Each customer can have several sessions.
- Each session can be made of severals hits (i.e. events) and each hit can have a several attributes or custom metrics (this is why the table is nested, for instance if you want to look at a the data at hit level you will need to flatten the table).

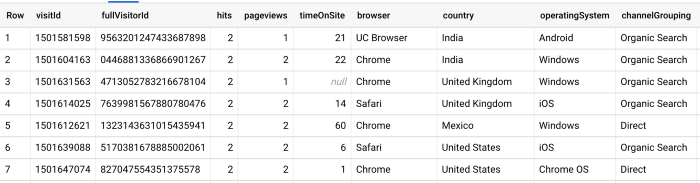

For example in this query we are only looking at session level features:

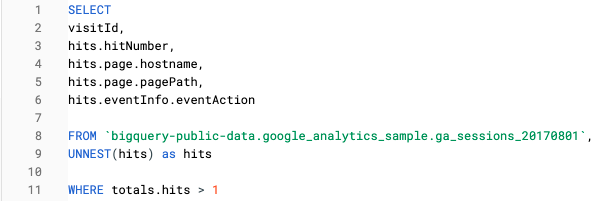

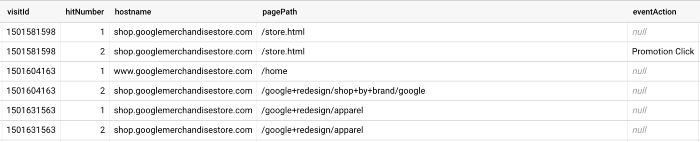

And in this query we have used an Unnest function to query the same information at hit level:
For more information on GA data check the documentation. Note that our project was developed on GA360 so if you are using the latest version, GA4, there will be some slight differences in data model, especially the table will be at event level. There are public sample tables of GA360 and GA4 data available on Big Query.
Now that we have access our raw data source we need to perform feature engineering before we can feed our table to a machine learning algorithm
Crafting the right features
The aim of the feature engineering step is to transform the raw Google Analytics data (extracted from Big Query) into a table ready to be used forMachine Learning.
GA data is very well structured and will require minimal data cleaning steps. However there are still a lot of information present in the table, many of which are not useful for machine learning or cannot be used as is so selecting and crafting the right features is important. For this we built features that seemed to be the most correlated with buying a product.

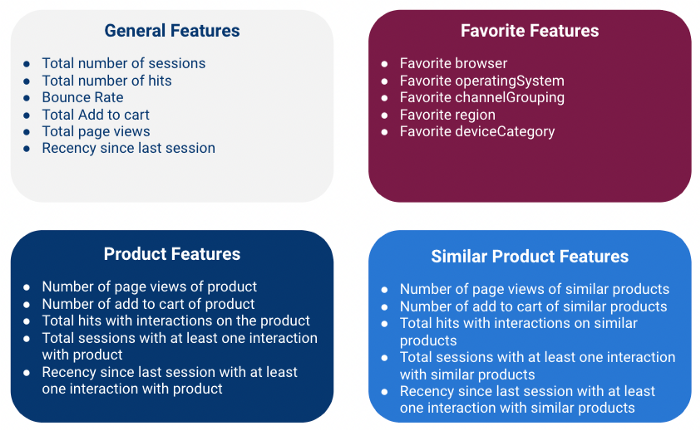

We crafted 4 types of features:
Note that we are computing all those features at a customer level which means that we are aggregating information from multiple sessions for each customer (using fullVisitorId field as a key)

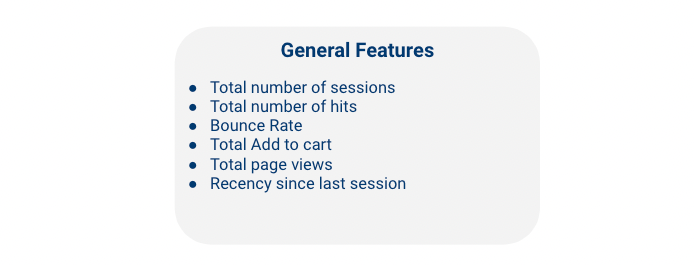

Global features are numerical features that give general information about the session.
Note that bounce rate is defined as % of times the customer only visited only one webpage during a session.
It was also important to include information on the recency of events: for instance a customer that just visited your website is probably more keen to purchase than one that visited it 3 months ago. For more information on this topic you can check the theory on RFM (recency, frequency monetary value).
So we added a feature Recency since last session = 1 / Number of days since last session which allows the value to be normalized between 0 and 1

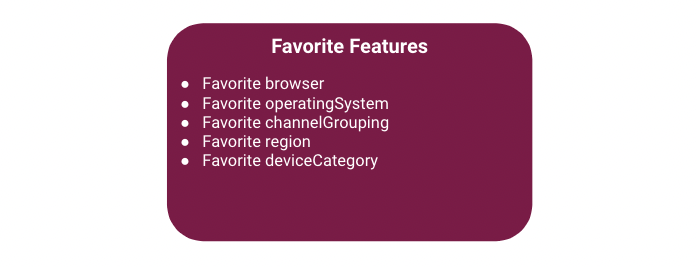

We also wanted to include some information on the key categorical data available such as browser or device. Since that information is at session level, there can be several different values for a single customer so we only take the one that occurs the most per customer (i.e. the favorite). Also, to avoid having categorical features with too high cardinality, we only keep the 5 most common values for each feature and replace all the other values with an “Other” value

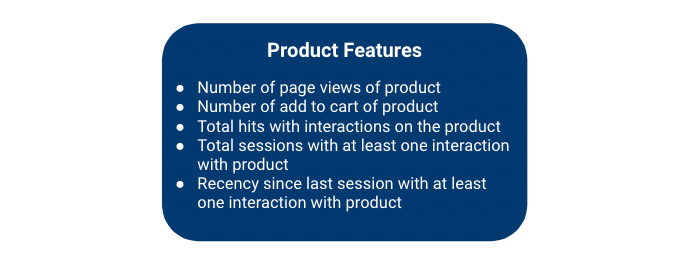

While the first two types of features are definitely useful in helping us answer the question “Is a customer going to buy on my website?”, they are not specific enough if we need to know “Is the customer going to buy a specific product?”. To help answer this question we built product specific features that only include the product for which we are trying to predict the purchase:
For Recency since last session with at least one interaction with this product, we use the same formula than for the Session Recency in the General Features. However we can have cases where there is 0 session with at least one interaction with the product, in which case we fill with 0. This makes sense from a business perspective since is our highest possible value is 1 (when the customer had a session since yesterday).

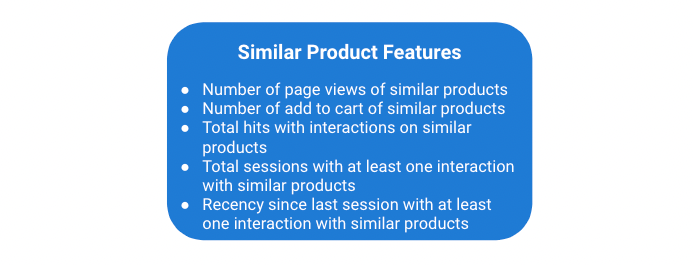

Similar Product features
In addition to looking at the customer’s interaction with the product for which we are trying to predict the probability to purchase, knowing that the customer interacted with other products with similar function and price range can definitely be useful (ie substitute product). For this reason we added a set of Similar Product features that are identical to the Product features except that we also include similar products in the variable scope. The similar products for a given product were defined using business inputs.
We now have our feature engineered dataset on which we can train our machine learning model.
Training the model
Since we want to know whether a customer is going to purchase a specific product or not, this is a binary classification problem.

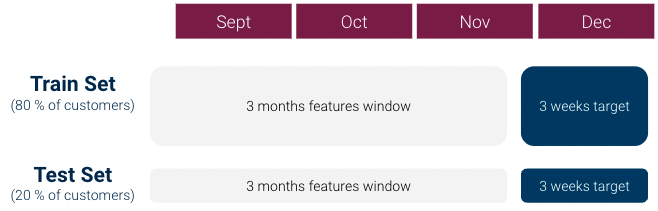

For our first iteration, we did the following to create our machine learning dataset (which was 1 row per customer):
- Compute the features using the sessions in a 3 months time window for each customer.
- Compute the target using the sessions in a 3 weeks time window subsequent to the feature time window. If there is at least one purchase of the product in the time window, Target it equal to 1 (defined as Class 1), else Target is equal to 0 (defined as Class 0)
- Split the data between a Train set and a Test using 80 / 20 random split.
However some first data exploration quickly showed that there was a strong class imbalance issue: Class 1 / Class 0 ratio was over 1:1000 and we did not have enough Class 1 customers. This can be very problematic for machine learning models.
To cope with these issues we made several modifications in our approach:
- We switched the target variable from making a purchase to making an add to cart. Hence, our model looses a bit in terms of business signification but increasing the volume of Class 1 more than compensates.

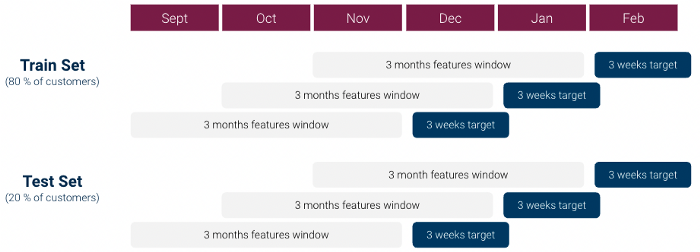

- We trained the model on several shifting windows,each of 3 months + 3 weeks, instead of a single one. In addition to increasing our volumes of data, this improves the generalization capacity of the model by training on various time of the year where the customers can have different purchase behaviors. Note that due to this, the same customer will be present several times in the dataset (at different periods). To avoid data leakage we make sure that he is always either in the training or the test dataset.
- We undersampled our Class 0 so that the Class 1 / Class 0 ratio is 1. Undersampling is a good solution to deal with the class imbalance issue, compared to other options such as oversampling or SMOTE, because we were already able to increase the volume of Class 1considerably with the first two changes. Only the training set is rebalancedsince we want the test set to have the same class ratios than the future data we will test it on. Note that we tested with higher ratios such as 5 or 10 but 1 was optimal in model evaluation.
Using this dataset we tested with several classification models: Linear Model, Random Forest and XGboost, finetuning hyperparameters using grid search, and ended up selecting an XGboost model.
Evaluating our model
When evaluating a propensity model there are two main types of evaluations that can be performed:
- Backtest Evaluation
First we performed backtest evaluation: we applied our model to past historical data and checked that our model is correctly identifying customers that are going to perform an add to cart. Since we are using a binary classifier, the model produces a probability score between 0 and 1 of being Class 1 (Add to cart).

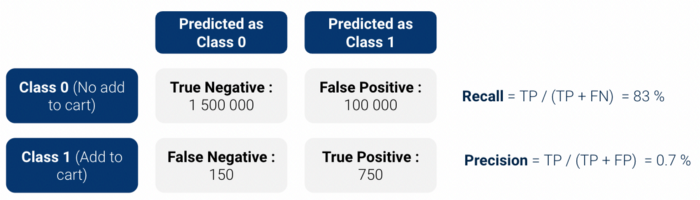

confusion matrix and compute the precision / recall (or their combined form in thef1 score). However there are two issues with these simple metrics:
- Some can be hard to interpret because the dataset is imbalanced (for instance the precision metric will generally be very low because we have so few Class 1)
- They require to decide on a probability threshold to discriminate between Class 0 and 1
So we decided to use two metrics that were more interpretable:
- PR AUC: Area under the curve of precision by recall graph(see this explanation for more details). Essentially this metric allows us to get a global evaluation on every possible threshold.This metric is well suited for unbalanced dataset where the priority is to maximize precision and recall on the minority class : Class 1(contrary to its cousin the ROC AUC)
- Uplift: we sort customers by their probability score and we divide our results into 20 ventiles. Uplift is defined as the Class 1 Rate in the top 5% / the Class 1 Rate across all the dataset. So for instance if we have 21 % Add to Cart in the top Top 5 % of the dataset vs 3 % Add to cart Rate in whole dataset we have an uplift of 7 which means our model is 7 times more effective than a random model.
Results on those metrics were rather positive, especially, Uplift was around 13.5.
Backtest evaluation is a risk free method for a first assessment of a propensity model but it has several limitations:
- Since it is only done on the past, the model output is not actually being used to impact the media budget strategy.
With our metrics, we only assessed if the model was able to correctly identify customers who would make an add to cart but we did not assess how the identification of those customers would generate a sales uplift.
So to get a better idea of our model’s business value we need to perform live test evaluation. Here we activate our model and use it to prioritize advertising budget spendings :
Results we obtained on the livetest were very solid:
- Compared to a simple rule based approach for evaluation propensity, our model’s ROAS was +221 %
- Furthermore we also compared our performance to a strong contender competition in the form of Google’s Session Quality Score: a score provided by Google in the Google Analytics dataset, and in that case our model was still at +73 % ROAS. This shows how a custom ML approach can bring considerable business value.
In addition to reaching solid performance, a strong side benefit of our approach is that our feature engineering is very generic. Almost none of the feature engineering steps need to be adapted to apply our model to a different country scope or product scope. In fact following our first success in the livetest, we were able to roll out our model to multiple countries and products in a very efficient manner.
Thank you for reading. I would be glad to hear your comments on this approach. Have you ever build propensity models? If so, what did you do differently?
Thanks to Bruce Delattre, Rafaëlle Aygalenq, and Cédric Ly.
